(TS-2) Thermostat Station for Hydro-X System

Overview

TrolMaster's TS-2 thermostat station is designed to replace a thermostat connected to a standard HVAC unit. The TS-2 can be used to control most HVAC systems including heat pumps and multi-stage HVAC systems. The TS-2 is wired to the HVAC system using the same low-voltage thermostat cable and has the standard color-coded wiring as most thermostats. The Hydro-x allows separate Day and Night settings for each of up to (4) TS  modules, so multiple HVAC systems can be controlled by a single Hydro-X system. The TS-2 also has an adjustable delay time for each HVAC system being activated. That minimizes high start-up (inrush current) and allows up to 4 HVAC systems to be safely controlled.

Features

• LCD Display, Easy Operation

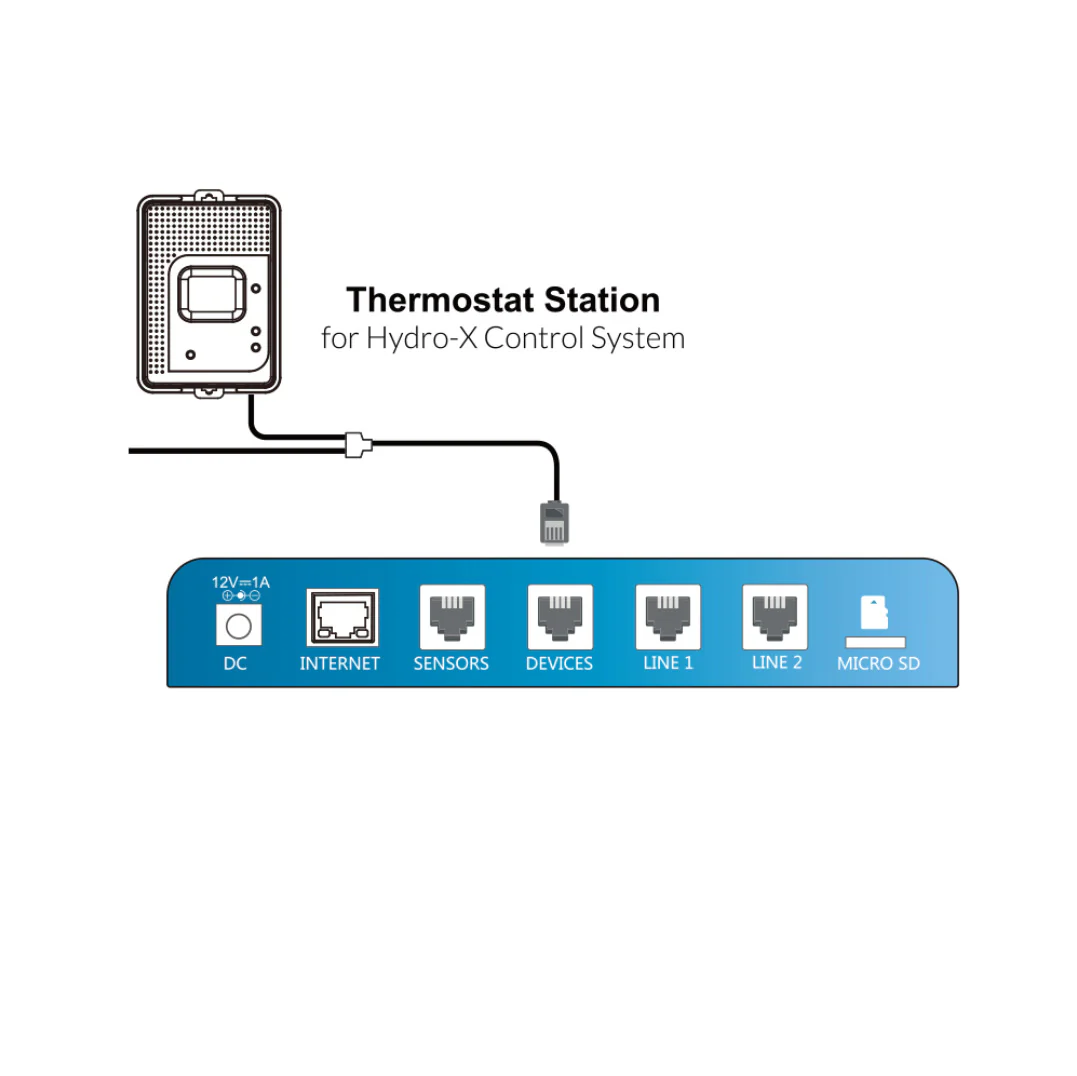

• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Specifications

Output Voltage : Maximum Current : Working Temperature : Working Humidity : Packaging Dimensions :

24V 1A 32-122°F ≤90% 160mm(L) x 86mm(W) x 86mm(H)
