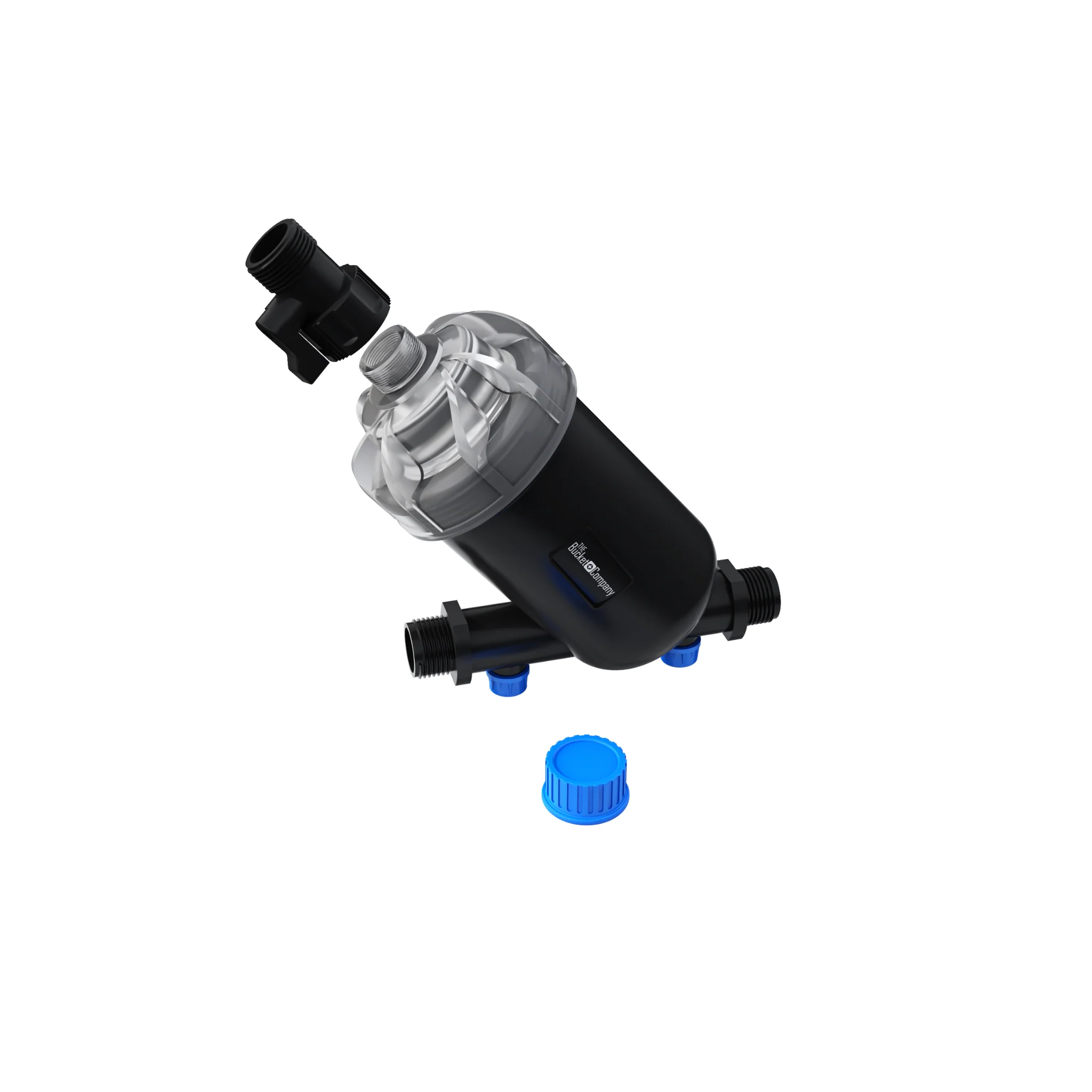

Inline Disc Filter

Description

The Bucket Company Inline Disc Filter is designed with grooves within the disc rings which crisscross to form a network that traps debris between and on the outside of the discs. As water is pumped into the filter and pressure increases, the water compresses the disc rings together tightly. The water is then forced to flow through the grooves of the disc rings, where debris is trapped; releasing only clean water to irrigation systems.

Features & Benefits

• Transparent cap for easy maintenance
• Discs can be removed for proper cleaning
• Made with UV-resistant, durable plastic material
• Disc filters are less likely to be crushed by organic material and debris when compared to Screen Filters
• Disc Filters are especially good at removing fine particles and organic matter compared to other types of filters

Specifications

	3/4" (in)	1" (in)
Thread Type:	NPT	NPT
Filtration Level:	120 Mesh - 130 Micron	120 Mesh - 130 Micron
Maximum Working Pressure:	8 Bar - 110 PSI	8 Bar - 110 PSI
Maximum Flow:	22 GPM	26 GPM
Filtering Surface Area:	30 SQ. IN.	30 SQ. IN.
